CMT Orange Tools Stile & Panel Carbide Tipped Router Bits for MDF

Photographed in our Blythewood shop. Colors may shift slightly by monitor.

CMT Orange Tools

CMT Orange Tools Stile & Panel Carbide Tipped Router Bits for MDF

★★★★☆ 4.3 / 5  ·  29 verified reviews ·  Part CMT254
$33.30 – $62.50
USD · Tax calculated at checkout
● In stock — ships from Blythewood today
These bits are suitable for decorative work on solid wood panels and MDF materials. They can be used in a single pass or in combination with CMT’s MDF panel bits to achieve complex and intricate profiles. With large cutting diameters and a range of popular profiles, these panel bits ensure excellent performance for a simple yet elegant appearance. CMT carbide tipped router bits produce flawless profiles due to the following features: SUPERIOR HIGH STRENGTH STEEL BODIES: CMT uses only high-quality, solid bar stock sourced from Switzerland, which provides exceptional resistance to fatigue and abrasion. Larger diameter bodies are heat forged before turning into precise bit bodies. This extra step produces a radial grain orientation which offers large diameter bits extra strength and durability. All machining fully automated ensuring the shanks and bodies are accurate and perfectly balanced. ANTI-KICKBACK DESIGN: This design controls the depth of cut and minimizes the chance of kickback, reducing your risk of injury. SINTERHIP HI-DENSITY INDUSTRIAL CHROME CARBIDE: CMT uses specially formulating chrome carbide specially designed to cut wood and laminates. A new process called SinterHIP (Hot Isostatic Pressing), helps prevent material failure and increases cutting life. TRI-METAL BRAZING: CMTs silver-copper-silver brazing “sandwich” provides a tight bond between the steel and the carbide, with a shock absorbing effect to protect the carbide tips when cutting harder woods and reduces the chance of failed welds. NON-STICK ORANGE SHIELD COATING®: Prevents bit from heating...
  • Free shipping over $55
  • 30-day returns, unused
  • Ships same day before 2pm ET
  • Real phone support

Specifications

BrandCMT Orange Tools
ModelCMT254
Shank Diameter1/2
TypeDoor, Drawer & Window Bits
Diameter D2 / 1-3/8 / 1-49/64
Length L1-7/8 / 2-1/16 / 2-1/32 / 2-11/64
Radius R1/4 / 1/8 / 15/32
Cutting Length I3/8 / 9/16 / 17/32 / 43/64
Minor Diameter D1/2 / 5/8 / 1-11/32
SetNo
Ships FromOhio, USA

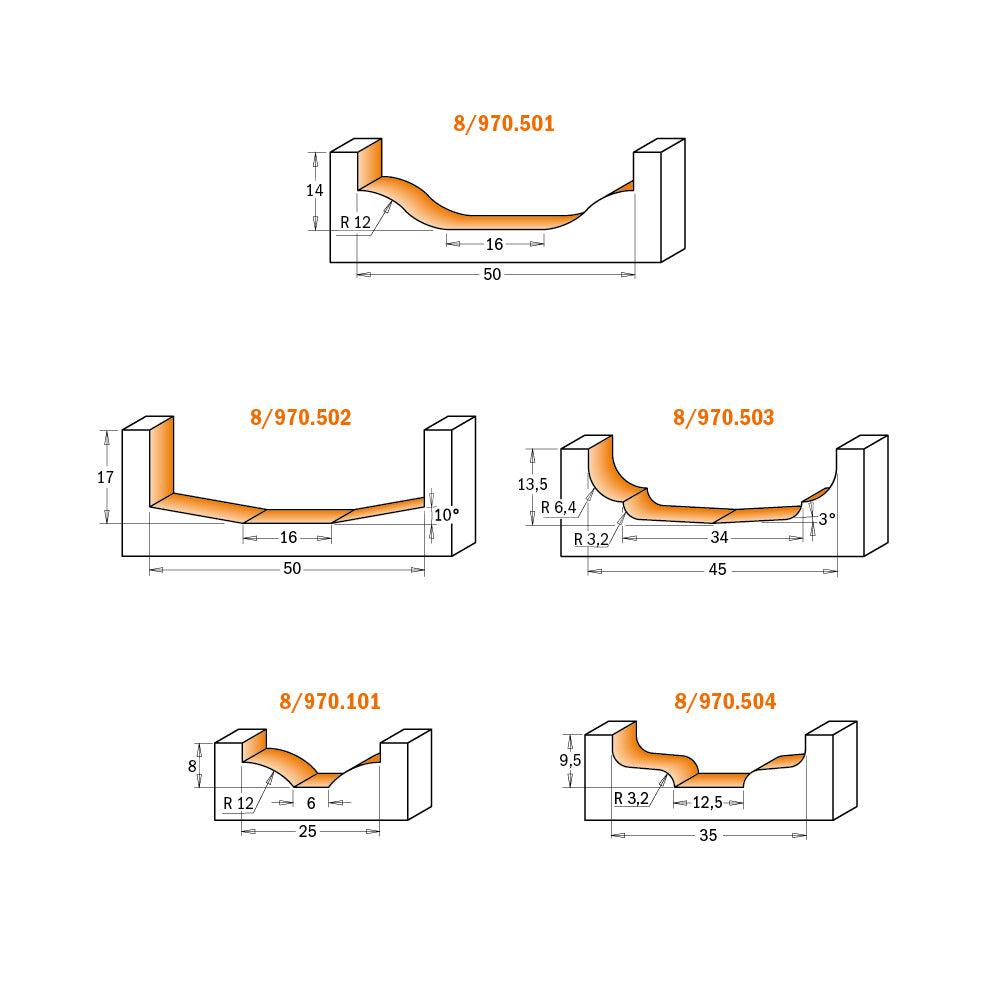

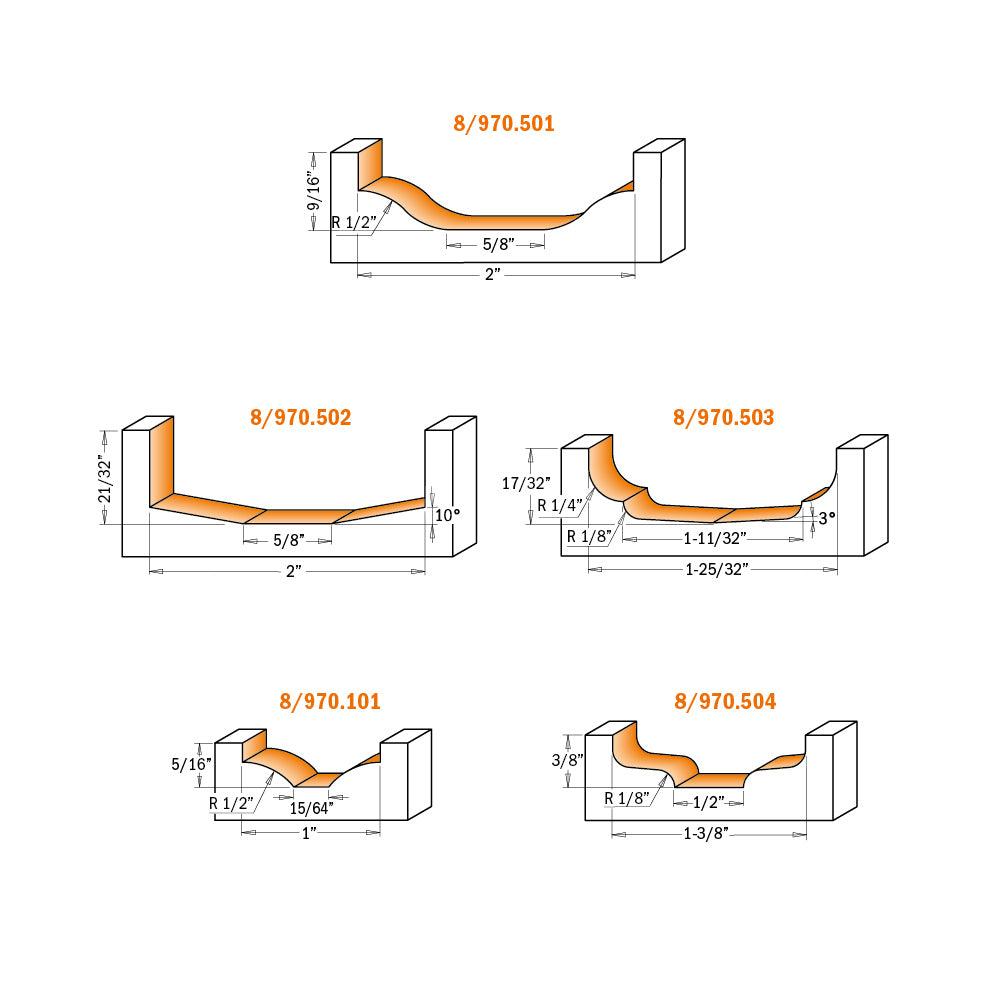

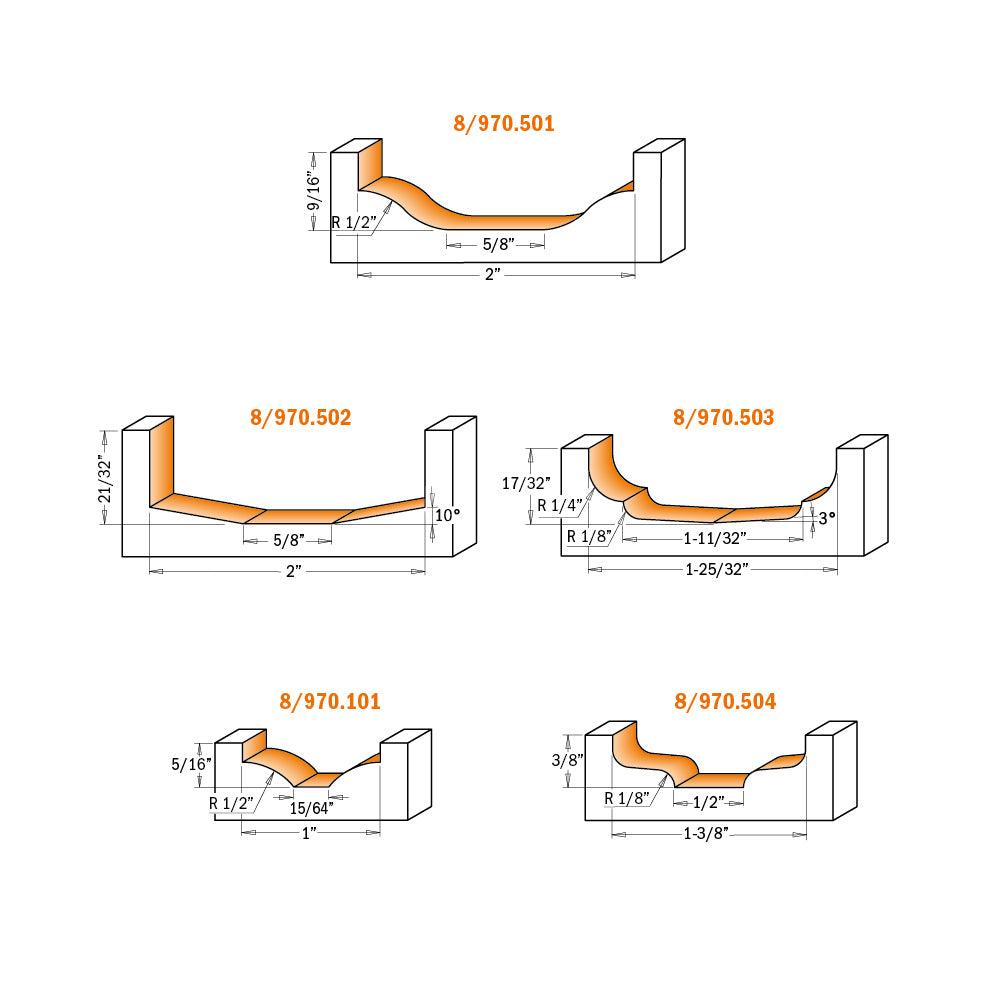

Sizes & Part Numbers

Part No.ConfigurationPrice
870.101.11D: 63/64" | L: 1-9/16" | I: 5/16" | : � | R1: "$33.30
870.504.11D: 1-3/8" | L: 1-7/8" | I: 3/8" | : � | R1: "$45.00
870.503.11D: 1-49/64" | L: 2-1/32" | I: 17/32" | : 3� | R1: 1/8"$61.00
870.502.11D: 2" | L: 2-11/64" | I: 43/64" | : 10� | R1: "$62.50
870.501.11D: 2" | L: 2-1/16" | I: 9/16" | R1: 15/32" | : �$62.50

Micro-grain carbide, brazed clean, ground for a glassy cut.
